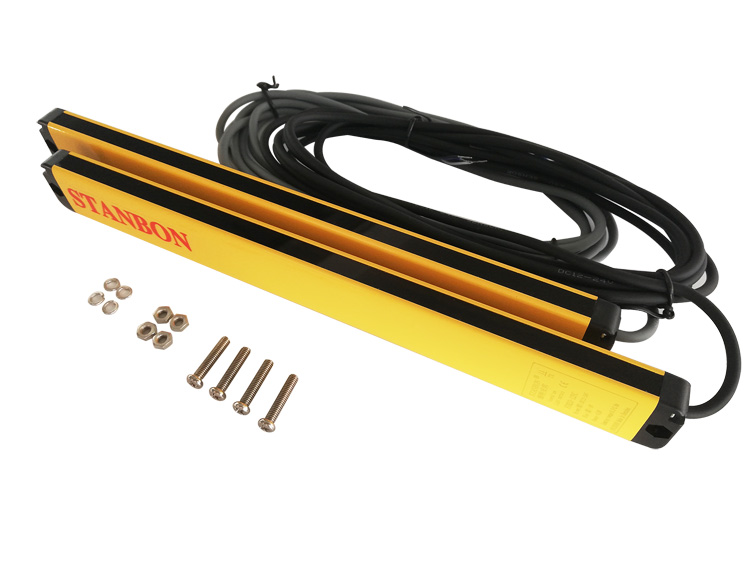

STM series ultra-thin compact safety grating profiled combined grating

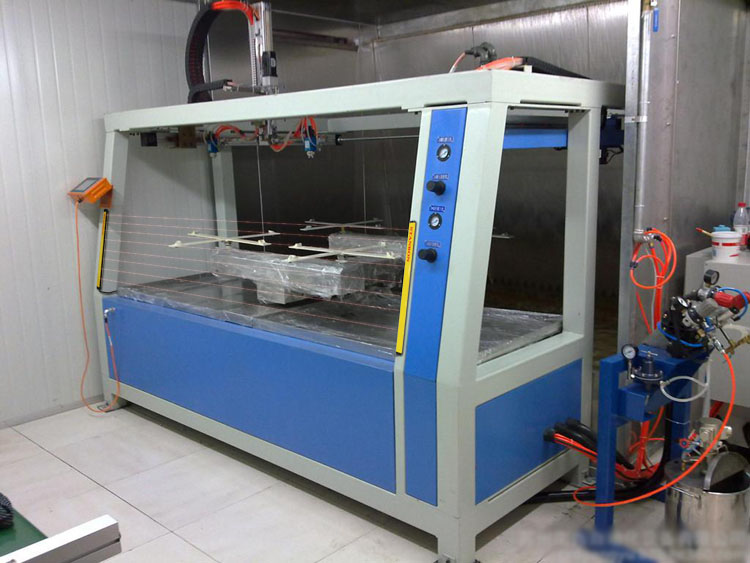

STM series ultra-thin compact safety grating is a one-on-one type of product developed and developed by EU advanced technology; it is suitable for two types of frame and is available in Europe, CE certification (EN 61000, EN550240) Certification, using transistor output mode, can be perfectly adapted to various automation equipment, can be directly connected to PLC use, can also drive relay work. It has strong stability and anti-electromagnetic interference capability. It can completely replace imported area sensors, such as NA, LC. SAS. PJV series, etc. It has been widely used in test fixtures, assembly lines, injection molding machines, hot melt machines, and lamination. Machines, non-standard automation, etc. detect low-risk equipment.
This product has the following characteristics:
※Excellent process design, small size, cross-section size is only 14*29mm.
※Direct outlets simplify wiring, reduce the risk of disconnection, and shorten the running detection time
※Ultra-thin appearance, flexible, small footprint, smaller blind space for the same protection space
※ Adopting optical synchronization design, it has strong anti-electromagnetic interference capability.
※The transmitting and receiving units can be powered independently and the wiring is convenient.

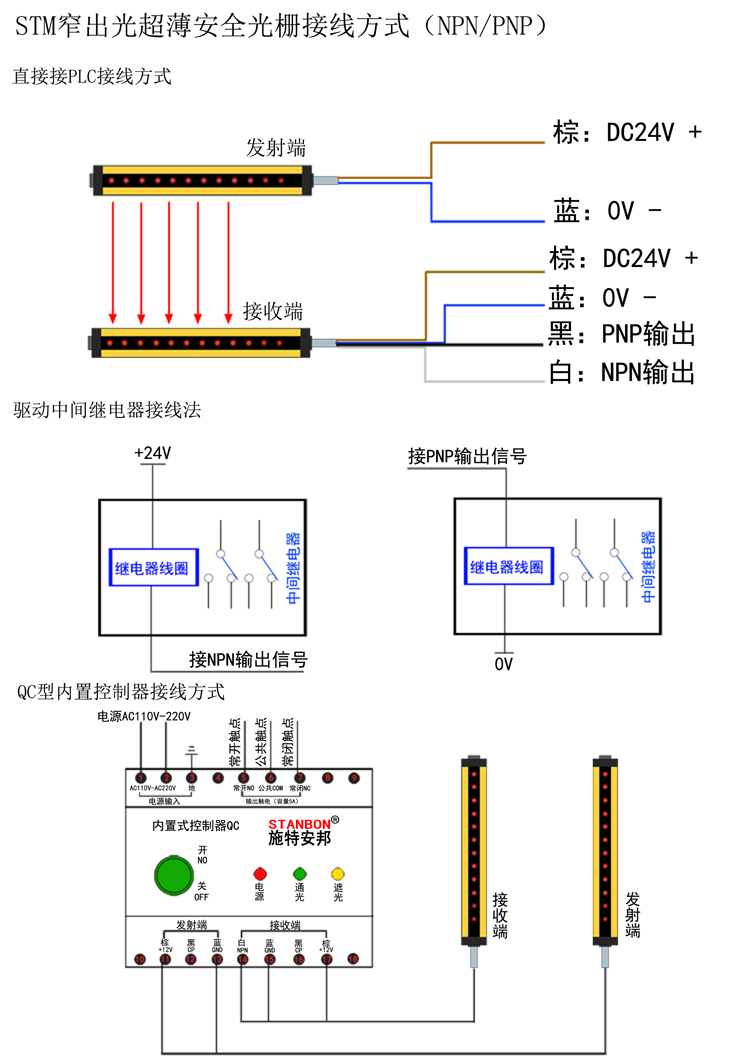

※With NPN/PNP dual output signal line.

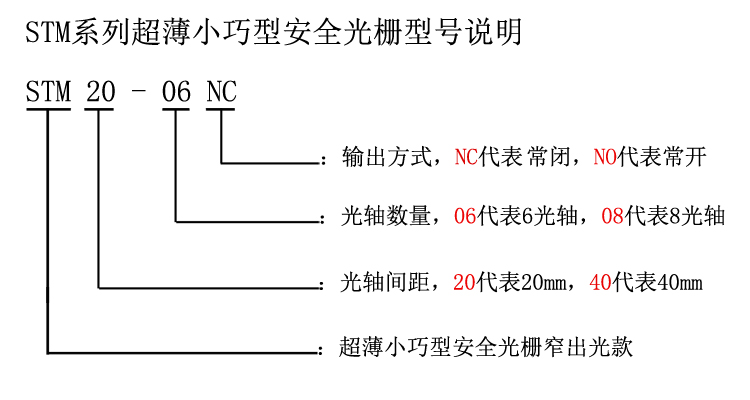

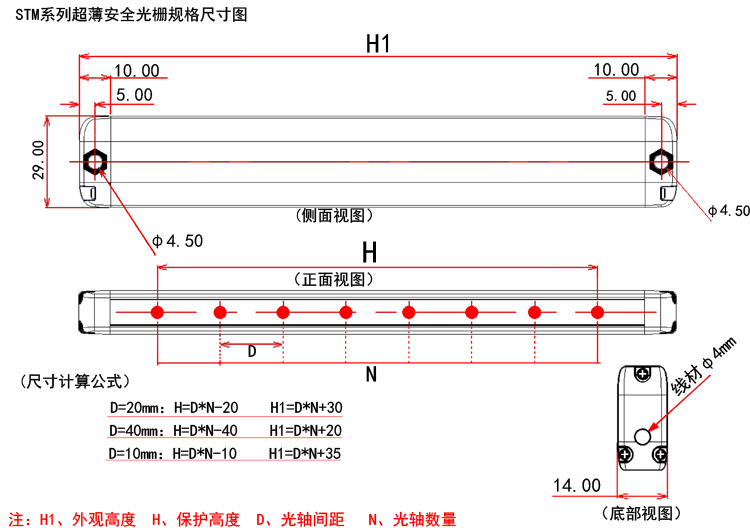

型号中STM40-04NC NC代表常闭，NO则代表常开，光栅同时具备NPN和PNP输出信号线。表格中未标注型号可根据详情页规格图中公式算出
